ESTfield 004
Racing


(Powered by Lada)

Click on images to see full size pictures

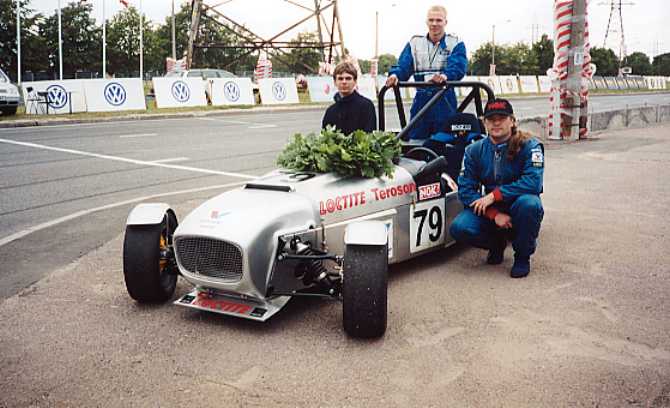

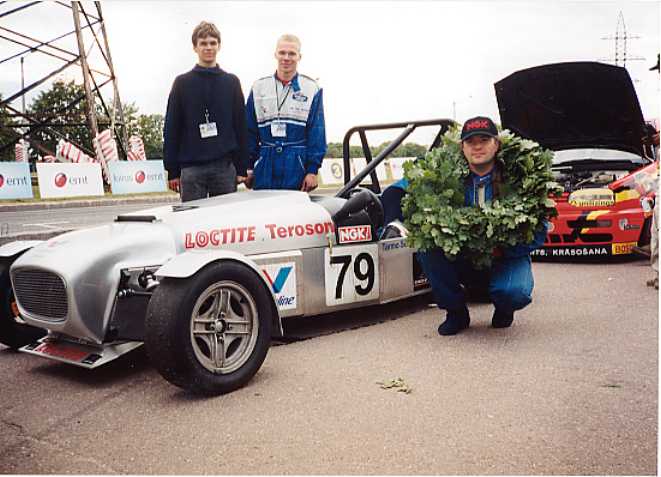

Our car's first race,
at the Tallinn City Circuit
in September 2001.

We came second in the
2000cc unrestricted class.

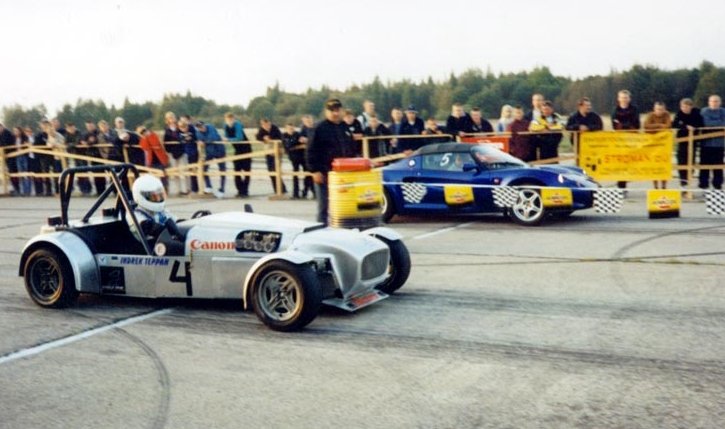

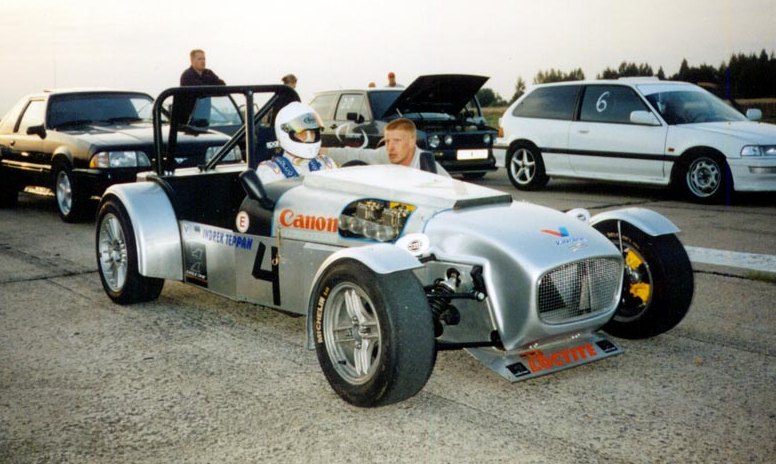

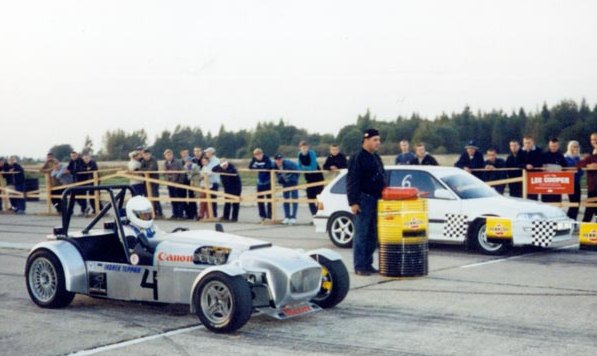

Some pictures from
the Raadi speed test
in September 2001






Built during 2001 by Racetech Ltd

This is a car we built to demonstrate the racing potential of the chassis and the Lada donor.
The mechanicals are all Lada but:
The 1600cc engine is tuned to give 154 bhp,
there are disc brakes fitted to the Lada rear axle,
a 5 speed straight-cut racing gearbox is fitted.

Otherwise the car is quite standard and weighs in at 620 kg unladen.

Here you will find the results of the Raadi speed test organised in Tartu in September 2001. Our class-winning 1/4 mile time was 13.56 secs.

A subsequent performance test on the Pärnu circuit revealed a 0-100 km/h time of 4.3 secs.

Specification:

Engine: LADA 2106
capacity:
power:
max revs
carburettor
1600cc
~154 bhp
7200 rpm
twin WEBER 45 DCOE 152
Transmission
gearbox
rear axle
brakes
5 speed straight-cut racing
LADA 2107 LSD
LADA 2101
Body
Chassis
Bodywork
welded square-section steel tube
Clad in sheet aluminium panels, nose-cone and wings in GRP
Dimensions
Weight
Length
Width
Height
Clearance
620 kg
3285 mm
1637 mm
1240 mm
40 mm
Performance
0-100 km/h
1/4 mile
max speed
4.3 sec
13.56 sec
190 km/h depending on axle ratio


:
